| № | Номер | Наименование | Цена | |
|---|---|---|---|---|

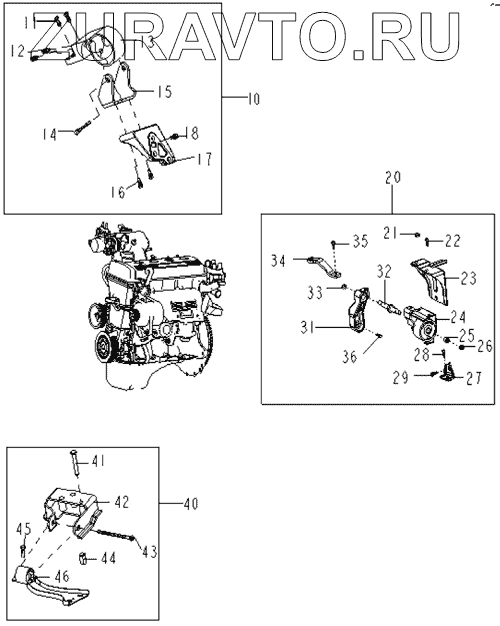

| 10 | ENGINE REAR MOUNTING ASSY | ENGINE REAR MOUNTING ASSY | Нет в продаже |
|
| 11 | HEXAGON HEAD BOLT & THICK PLAIN WASHER ASSY | HEXAGON HEAD BOLT & THICK PLAIN WASHER ASSY | Нет в продаже |
|
| 12 | HEXAGON HEAD BOLT M10x125x110 | HEXAGON HEAD BOLT M10x125x110 | Нет в продаже |
|
| 13 | 1600437180 | ENGINE REAR CUSHION ASSY. | Нет в продаже |
|
| 14 | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | Нет в продаже |
|
| 15 | 1600501180 | ENGINE MOUNTING REAR BRACKET | Нет в продаже |
|
| 16 | HEXAGON FLANGE BOLT-PRODUCT GRADE B M1x125x30 | HEXAGON FLANGE BOLT-PRODUCT GRADE B M1x125x30 | Нет в продаже |
|
| 17 | 1600434180 | ENGINE MOUNTING REAR 1# BRACKET | Нет в продаже |
|
| 18 | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | Нет в продаже |
|
| 20 | ENGINE LEFT MOUNTING ASSY | ENGINE LEFT MOUNTING ASSY | Нет в продаже |
|
| 21 | HEXAGON FLANGE BOLT-PRODUCT GRADE A M10x125 | HEXAGON FLANGE BOLT-PRODUCT GRADE A M10x125 | Нет в продаже |
|
| 22 | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | Нет в продаже |
|
| 23 | 1600564180 | ENGINE MOUNTING LEFT BRACKET | Нет в продаже |
|
| 24 | 1600436180 | ENGINE MOUNTING LEFT BRACKET CUSHION ASSY. | Нет в продаже |
|
| 25 | THICK PLAIN WASHER M12x125x25 | THICK PLAIN WASHER M12x125x25 | Нет в продаже |
|
| 26 | HEXAGON FLANGE BOLT-PRODUCT GRADE A M12x125 | HEXAGON FLANGE BOLT-PRODUCT GRADE A M12x125 | Нет в продаже |
|
| 27 | 1600566180 | ENGINE MOUNTING LEFT SUPPORT BOARD | Нет в продаже |
|
| 28 | HEXAGON HEAD BOLT | HEXAGON HEAD BOLT | Нет в продаже |
|
| 29 | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | Нет в продаже |
|
| 31 | ENGINE RIGHT MOUNTING INSULATOR REINFORCEMENT | ENGINE RIGHT MOUNTING INSULATOR REINFORCEMENT | Нет в продаже |
|
| 32 | AXIS PIN | AXIS PIN | Нет в продаже |
|
| 33 | HEXAGON HEAD BOLT & PLAIN WASHER ASSY | HEXAGON HEAD BOLT & PLAIN WASHER ASSY. | Нет в продаже |
|
| 34 | ENGINE RIGHT UPPER MOUNTING BRACKET | ENGINE RIGHT UPPER MOUNTING BRACKET | Нет в продаже |
|
| 35 | HEXAGON HEAD BOLT & PLAIN WASHER ASSY | HEXAGON HEAD BOLT & PLAIN WASHER ASSY. | Нет в продаже |
|
| 36 | HEXAGON HEAD BOLT M10x125x38 | HEXAGON HEAD BOLT M10x125x38 | Нет в продаже |
|
| 40 | 2000410104 | ENGINE RIGHT FIXING BRACKET | Нет в продаже |
|
| 41 | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | Нет в продаже |
|
| 42 | 1600418180 | ENGINE INSTALLATION RIGHT BRACKET | Нет в продаже |
|
| 43 | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | Нет в продаже |
|
| 44 | LONG NUT WITH SPRING WASHER | LONG NUT WITH SPRING WASHER | Нет в продаже |
|
| 45 | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | HEXAGON HEAD BOLT & SINGLE COIL SPRING LOCK WASHER | Нет в продаже |
|
| 46 | 1600435180 | ENGINE RIGHT CUSHION ASSY. | Нет в продаже |
|
10
11
12
13
14
15
16
17
18
20
21
22
23
24
25
26
27
28
29
31
32
33
34
35
36
40
41
42
43
44
45
46
